Product Description:

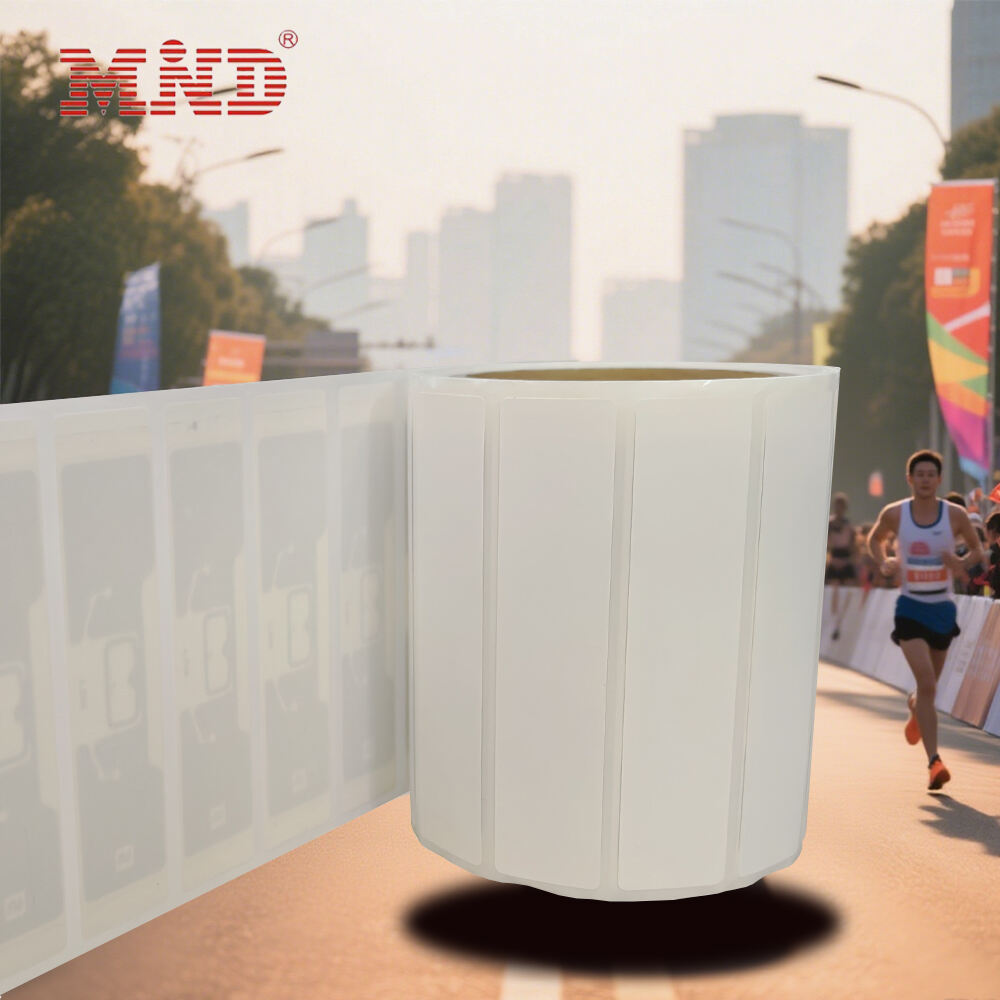

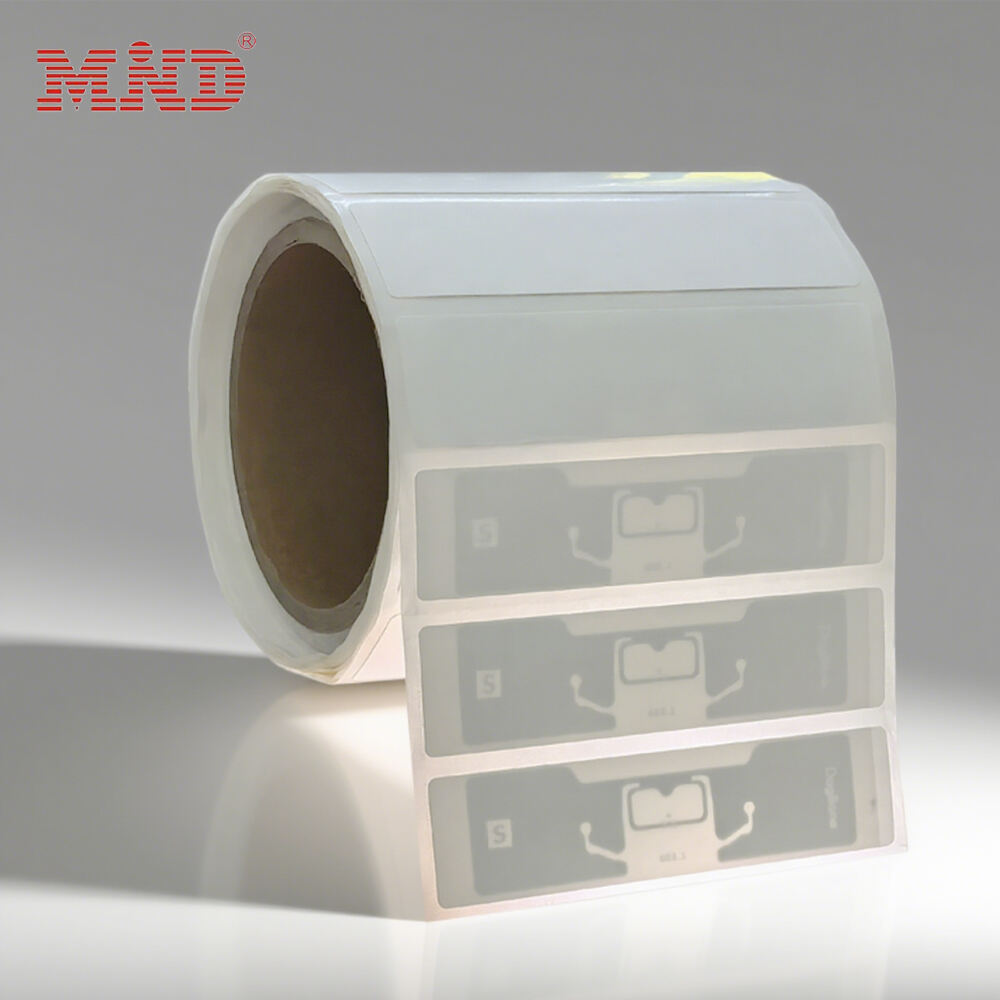

Designed specifically for precise timing in marathon events, the UHF RFID Dogbone Label leverages the high-performance Impinj M730 chip as its core, combined with a lightweight Dogbone-style structure, delivering a stable and efficient wireless identification solution for professional race timing.
Compliant with the UHF frequency band (adhering to EPC Gen2 / ISO 18000-6C standards), this label relies on the Impinj M730 chip’s exceptional signal processing capability to achieve accurate identification even in high-speed movement. Even when athletes sprint through timing points at full speed, the recognition accuracy remains above 99.9%, effectively eliminating missed reads and misreads. Its Dogbone design is optimized for ergonomics and race scenarios, with a thickness of only 0.8mm and a weight of less than 3g. It can be easily attached to bib numbers, running shoes, or wristbands, offering a high fit without the feeling of foreign objects, ensuring no impact on athletes’ performance.
In terms of performance adaptability, the label has been specially optimized to meet the multi-environment and long-distance characteristics of marathons. It covers a reading distance of 1-8 meters (adjustable according to timing device parameters) and supports simultaneous multi-label reading (capable of processing over 500 label signals per second), making it suitable for scenarios where dense crowds rush to the finish line. The outer shell is made of waterproof and wear-resistant PET composite material, which can withstand rain, sweat erosion, and short-term extrusion, adapting to changing outdoor weather and high-intensity usage in races.
Furthermore, the label is fully compatible with mainstream marathon timing systems (such as Chronotrack and RaceChip). The chip’s built-in large-capacity memory can store key information like athletes’ numbers and groups, featuring fast data transmission and strong anti-interference ability. It helps race organizers realize full-process automated management, including starting line check-in, intermediate segment timing, and finish line sprint timing. This significantly reduces manual statistics costs, improves race operation efficiency and professionalism, and serves as a core timing identification component for medium-to-large marathons and road running events.
Product Parameters:
| Item | Description | |
| Product | UHF RFID Dogbone label for Marathon Timing System Impinj M730 | |
| Chip Type | Impinj/M730 | |
| EPC Memory | 128Bits | |
| User Memory | 0Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO 18000-63/Gen2v2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 97*27mm | |
| Available Dimensions(mm) | 94*24mm | |
| or Customized | ||
| Application | Marathon Timing System | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
