Description

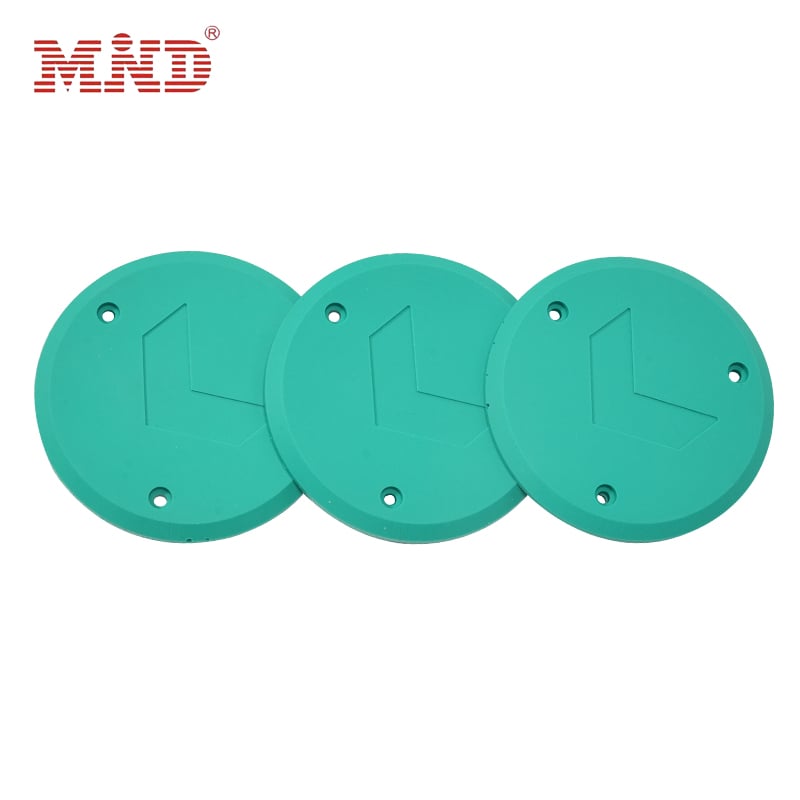

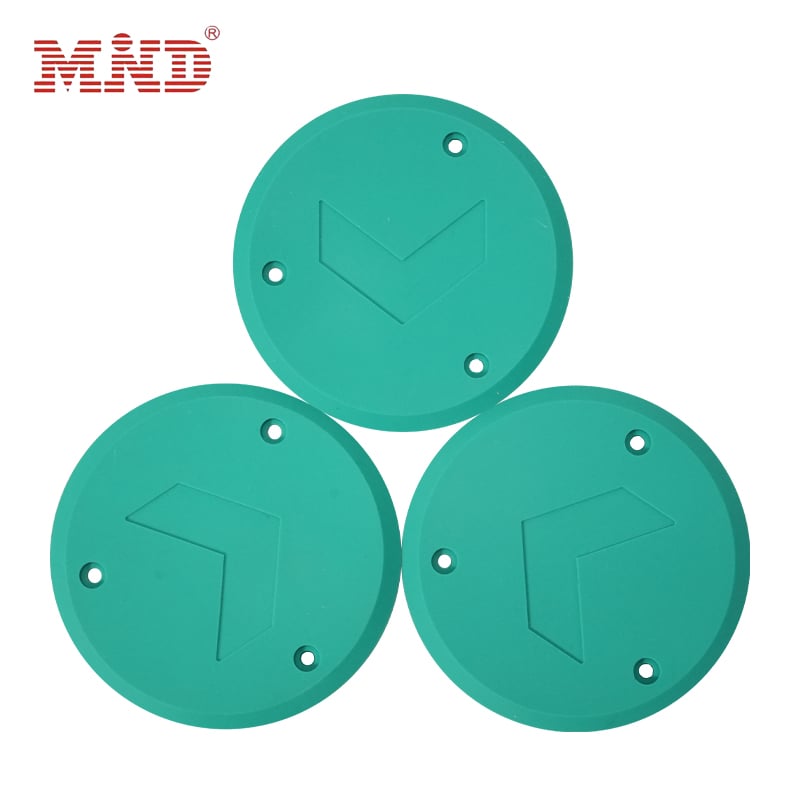

This anti-metal landmark is crafted from high-performance modified polyurethane resin, boasting excellent anti-metal interference capabilities that ensure stable and reliable signal transmission even on metal surfaces. Equipped with chips compliant with EPC Class1 Gen2 and ISO18000-6C protocols, it supports dual-band operation at 902-928MHz (US standard) and 865-868MHz (EU standard). Paired with the high-performance IMPINJ R6-P chip (customizable chips available), it achieves a stable reading range of 2-4 meters, meeting the needs for rapid data reading and real-time tracking.
The product incorporates multiple durable designs. With an IP68 waterproof rating, it easily handles humid outdoor environments. Its wide operating temperature range of -40℃ to +100℃ (with short-term resistance to high temperatures up to 120℃) and resistance to alternating high and low temperatures enable it to adapt to harsh industrial scenarios. Featuring a 3-ton pressure-bearing capacity and wear-resistant, anti-aging material properties, it ensures long-term use in complex environments such as outdoor roads and wall surfaces. Combined with flexible installation methods including screw locking, adhesive backing, and riveting, it is suitable for diverse scenarios like smart warehouse management and AGV landmark recognition, providing an efficient and reliable identification and tracking solution for industrial Internet of Things applications.
| Item | Description | ||
| Product | UHF RFID Anti Metal Geographical Identification Recognition Tag | ||
| Chip Type | IMPINJ R6-P | ||
| EPC Memory | 128bits | ||
| User Memory | 32bits | ||
| TID Memory | 48bits | ||
| Material | Modified Polyurethane Resin | ||
| Frequency | 902- 928MHz(US) | ||
| Operating Mode | Passive | ||
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen | ||
| IC Life | 50 years data retention | ||
| Operating Temperature/Humidity | （-40℃ to +100℃） | ||
| TAG SIZE(mm) | Ø80mm*T:5mm | ||
| or Customized | |||
| Weight | 25g | ||
| Application | Underground Marking, Cement component, Bridge, Bridge pier, Geographical Identification Recognition | ||
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | ||
