Description
Product Description:

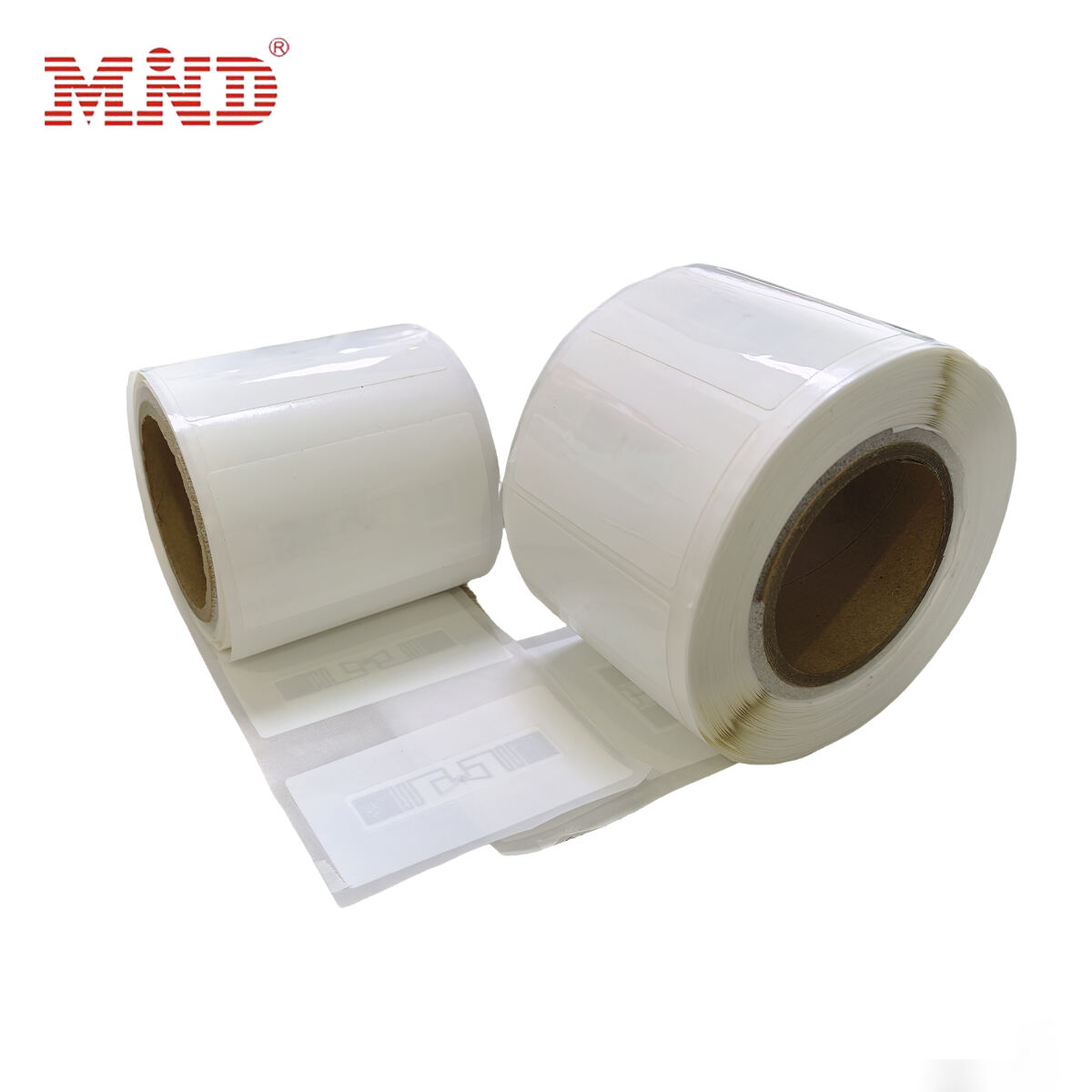

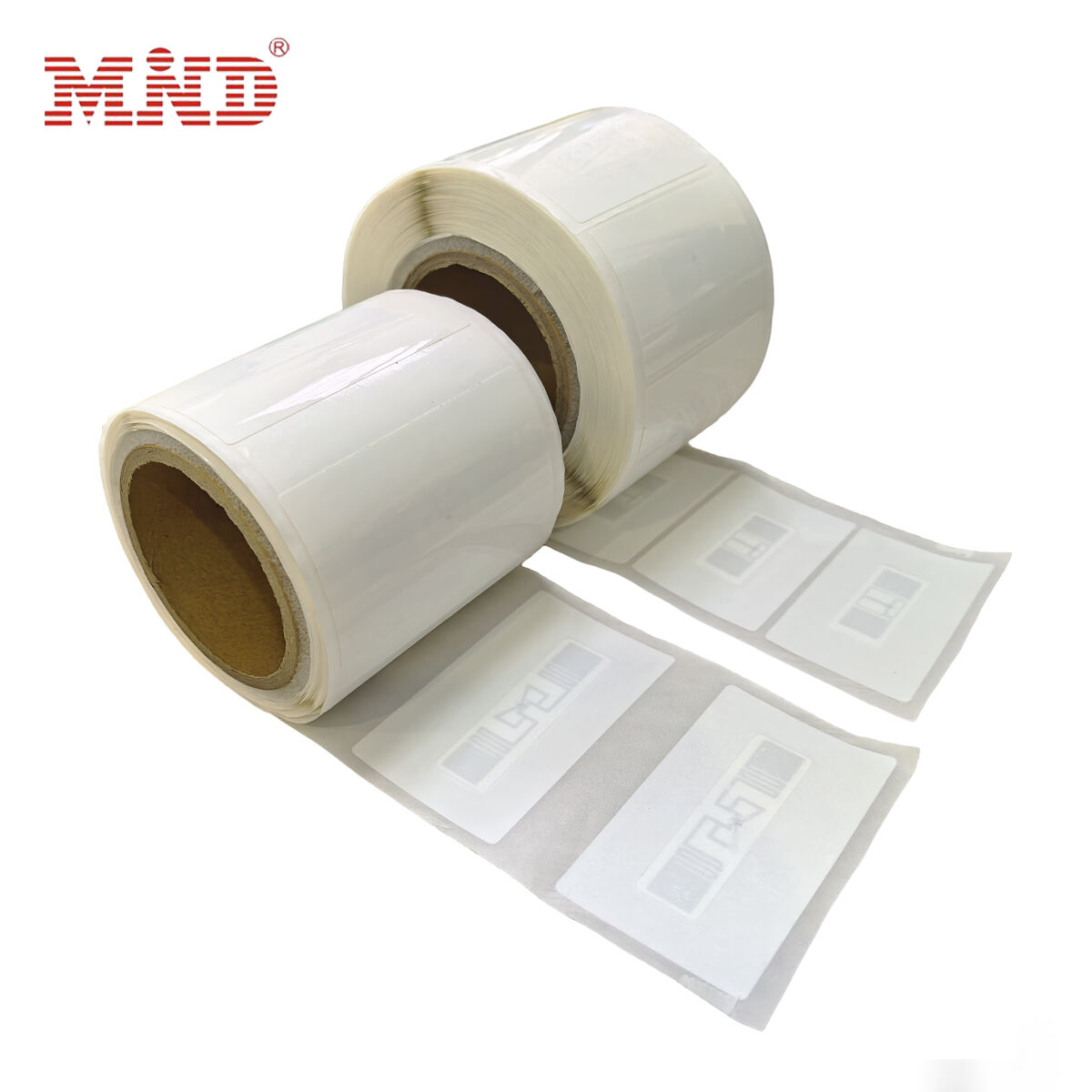

Ideal for harsh environments (moisture, dust, high impact) in logistics and industrial manufacturing, this UHF RFID pallet label (EPC Gen2/ISO 18000-6C) stands out for strong adhesion, anti-collision protection, and durability.
Strong Adhesion: Industrial acrylic glue sticks firmly to wood, plastic, and metal pallets
Anti-Collision Function: Hollow design at the chip area, paired with 2mm impact-resistant PET, disperses most impact force to protect the chip—ensures no signal loss
Waterproof & Durable: Made of waterproof PET substrate, with a scratch/wear-resistant surface. Performs well in cold chains and dusty warehouses, enabling accurate cargo tracking and reducing inventory errors.
Product Parameters:
| Item | Description |
| Product | UHF RFID Pallet Label for Harsh Port Environment and Marine Container |
| Chip Type | HF,UHF chip all available |
| EPC Memory | 96-128Bits，96-496bits，128bits etc. |
| User Memory | 32Bits，512Bits etc. |
| TID Memory | 32-96Bits etc. |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO 18000-63/Gen2v2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| Available Dimensions(mm) | Customized |
| Application | Industrial acrylic glue sticks firmly to wood, plastic, and metal pallets |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
